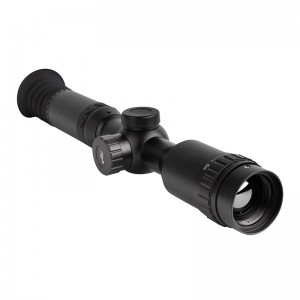

DALI RS3 Infrared Thermal Imager Scope Monocular Thermal Hotspot Tracking

Short Description:

Product Detail

Item	RS325-384	RS335-384	RS350-384
Detector type	VO×Uncooled FPA
Pixel	384×288	384×288	384×288
Pixel pitch	12μm
NETD	≤40mk
Focal length	25mm	35mm	50mm
FOV(±5%)	10.6°×7.9°	7.5°×5.7°	5.3°×4.0°
Frame rate	50Hz
Focus	Manual
Screen	Lcos 1280×960,color lcos 1280×960 resolution
Out-pupil distance	55mm
Eyepiece magnification	10X
Base magnification	X2.3	X3.25	X4.65
Visual degree	Adjustable
Brightness/contrast	Adjustable
Polarity reversal	Black hot/White hot
Electronic zoom	X2 X3 X4
Picture in picture	Yes
Division	Yes
WIFI	Yes
Strorage	32G
Strorage method	Video,take photos
Battery type	Build-in lithium battery
Working hours	＞5 hours
Impact resistance	800G
Anti-vibration	2g,GB/T2423.10(iec60068-2-6)
Protection level	IPX6
Electromagnetic compatibility	Meet CE requirements
Humidity	0-95%
Working temp	-20℃～+50℃
Storage temp	-40℃～+70℃
Shell color	Black
Connector	Can be equipped with sight standard fixture (30 standard mounting ring )
Size	320×75×65mm(Without eye mask)
Weight	＜900g
Power imput	Type-C Connector(Charging,data transmission)
