Guide TA435 TA450 Series is a versatile clip-on thermal imaging attachment which helps transform the daylight optics into a thermal imager.


Product Detail

Product Tags

Description

Infrared Thermal Sight Optic Thermal Imaging Sight Thermal Imaging Sight

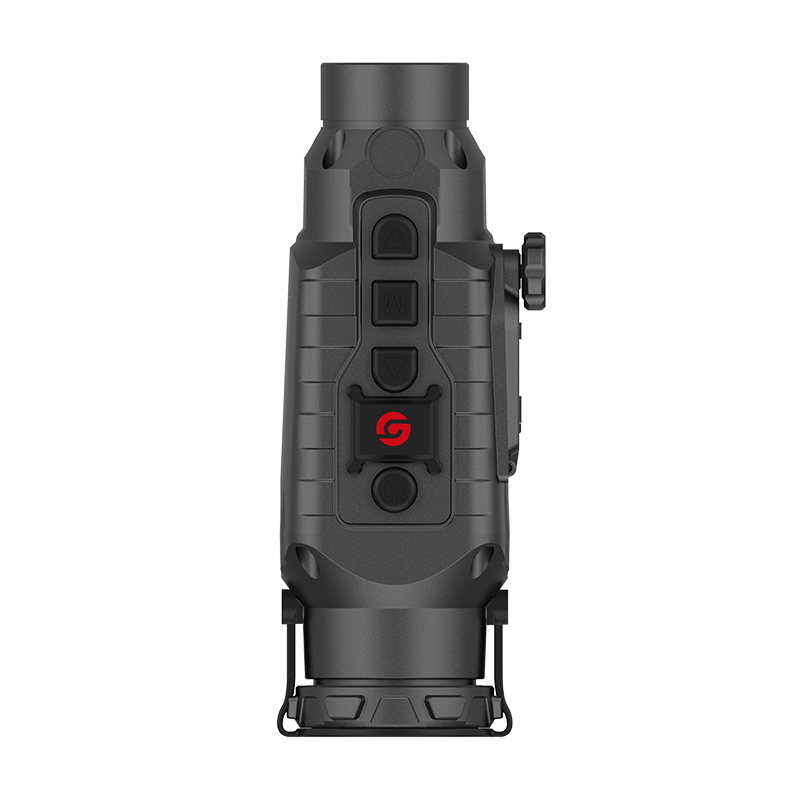

Guide TA435 TA450 Series is a versatile clip-on thermal imaging attachment which helps transform the daylight optics into a thermal imager.It can be taken as a thermal imaging attachment adding thermal imaging capability to your scope, or as a portable thermal imaging monocular.This compact, lightweight and durable device can be quickly mounted and dismounted without re-zeroing, providing excellent image in various environments.

Main Features of Infrared Thermal Sight Optic Thermal Imaging Sight Thermal Imaging Sight

* Simple & Adaptable: Switchover among five scene modes by one button, truly realizing all-weather environment self-adaptation
* Convenient: You neither have to re-zero your scope, nor do you have to remove your regular daytime scope in order to install this one. Just "clips on" right in front of it.
* Versatile: You can use it as a dedicated thermal scope or clipped on in front of your regular day time scope for high quality night vision experience.
* Compact and lightweight: ≤400g
* OLED color eyepiece display, capable of displaying images in various color modes
* Waterproof IP67
* Super sound-off and bright light Cut-off System, prevent exposure
* Optional Bluetooth remote controller for easy operation
* Quick mount and no-shot zero (recommended magnification of the day scope/sight : 2-4X)

Specifications

Model TA435 TA450
Detector
Detector Type 400×300 @17μm, VOx
Spectral 8μm~14μm
NETD ≤50mk
Focus lens
Focal Length 35mm F1.2 50mm F1.2
Focusing Manual focus
FOV 10.66°×8.0° 7.5°×5.6°
Display system
OLED Colorful 0.39 inch OLED screen 1024×768
Eyepiece Monocular, Pupil Distance 10mm, Pupil Caliber 20mm
Digital Zoom 1
Image Processing
Frame Rate 50Hz(PAL)
Digital Zoom 2×,4×
Auto Tracking Hotspot track
Calibration Automatic calibration/ Manual calibration (shutter) /Manual scene compensation
Scenes Modes Enhanced, Highlight, Natural
Color Palettes Black hot, white hot, red hot, green hot
Contrast/Brightness Adjustable
Power Systems
Battery CR123A×2/ICR16340×2
Power Supply can be powered by 5V2A external power supply
Interface
7-Pin LEMO Interface Support video output and external power supply
Environment parameter
Operating Temperature -30°C-50°C
IP level IP67
Certificate RoHS Certificate/CE Certificate/FCC Certificate
Physical Characteristics
Weight ≤400g ≤450g
Size 150mm×52mm×57mm 178mm×58mm×62mm
Package
Standard Blinder, Carrying bag, Charger, User manual, 7-Pin Lemo to USB cable, Warranty
Optional External eyepiece, Adapter ring, CR123A×2(unrechargeable)battery, ICR16340×2(rechargeable)battery, Bluetooth remote controller, Charger, Video cable (two in one, power supply & video output
Detection Range
Human:1.8m×0.5m 1000m 1400m
Vehicle:2.3m×2.3m 2400m 3000m
Recognition Range
Human:1.8m×0.5m 500m 700m
Vehicle:2.3m×2.3m 1000m 1400m
