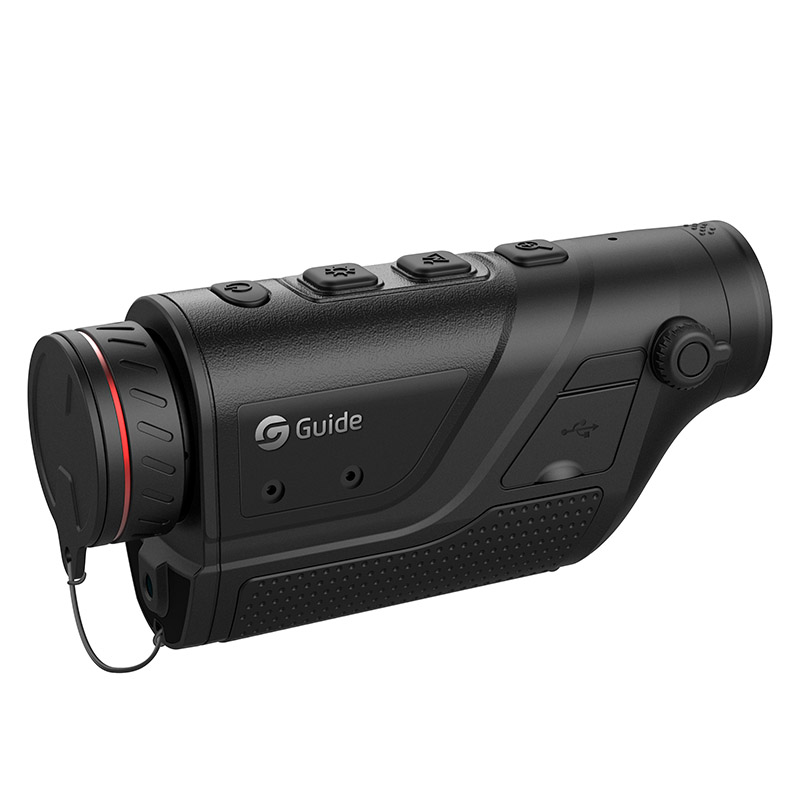

Guide Thermal Imaging Sight Scope Monocular Night Vision for Professional Hunting TD210 TD410 TD420 TD430

Short Description:

Product Detail

Product Tags

Description

TD Delphinus Series follow the design of traditional optical equipment. It is a small, lightweight , simple operation, and a wide range of application scenarios for infrared handheld thermal imaging monocular.
TD Thermal scope has clear imaging and comfortable observation, suitable for medium-distance and short-distance observation, It is an ideal equipment for outdoor night vision.

Specifications

Model	TD210	TD410	TD420	TD430
Infrared Detector
Detector type	VOx
Detector resolution and pitch	256 × 192, 12 μm	400 × 300, 12 μm	400 × 300, 12 μm	400 × 300, 12 μm
Spectral range	8 to 14 μm
NETD	≤50mk @ F1 25℃
Lens
Focal length	10 mm; F1.0	19 mm; F1.0	25 mm; F1.1	35 mm; F1.0
Focus	Electric	Manual	Manual	Manual
Field of view	17.1°×13.0°	13.6°×10.3°	10.4°×7.9°	7.5°×5.6°
Frame Rate
Output frame frequency	50 Hz
Zoom
Optical zoom	1.5x	1.9x	2.4x	3.4x
Digital zoom	1x, 2x	1x, 2x and 4x	1x, 2x and 4x	1x, 2x and 4x
Visual effect	It's like viewing at a 22’‘ screen at 1 meter
Power
Battery type	Single, replaceable 18650 battery
Battery life	≥ 8 hours	≥ 7 hours	≥ 7 hours	≥ 7 hours
Interface
USB	Type C (USB 2.0 standard), supporting analog video and power supply
Video interface	USB Type C
External expansion	External Display and Bluetooth remote control
Display
Display type	0.4" FLCOS
Resolution	1280 × 960
Eyepiece	Monocular, exit pupil distance≥12 mm, diopter adjustment: -4 to＋2
Eyepiece zoom	13.8x
Video output	Analog video
Button
Button functions	Power / Brightness / Zoom / Color palette
Functions
Screen brightness adjustment	5 levels
Detector brightness adjustment	5 levels
Detector contrast adjustment	5 levels
Image enhancement	Supoorted only when there is no laser indicator
Scene modes	Enhanced, Highlight and Natural
Ultra power saving mode	Turn WIFI off or reduce the screen brightness level
WIFI	Transmission of real-time video via WIFI for remote control in the 2.4G frequency band and within 15 meters
Color palettes	Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot
Hot spot tracking	Available
Working indicator	On / Off
Compensation modes	Automatic, shutter and scene compensation
Automatic shutdown	Closed, 15, 30 or 60 mins
Automatic sleep	Closed, 5, 10, or 15 mins
Language settings	Chinese or English
Laser indicating	Supported only when a laser indicator is available, up to 200 m
System
PIP	Upper left, Upper middle, Upper right, Closed
Start up	1 s	2 s	2 s	2 s
Environmental
Operating temperature range	-10 ℃ to 50 ℃
Storage temperature range	-30 ℃ to 60 ℃
Humidity	10 % to 95 % non-condensing
Shock	30 G at 11 ms half sine pulse (as per IEC60068-2-27)
Vibration	10 Hz - 150 Hz - 10 Hz 0.15 mm (as per IEC60068-2-6)
Drop	1 m
Encapsulation	IP66
Certification	IP66, FCC, CE, RoHS, EAC, WEEE, un38.3, IEC 60825-1 Class 2
Physical
Weight	≤280 g	≤350 g	≤350 g	≤350 g
Size (L × W × H)	130 × 40 × 70 mm	150 × 40 × 70 mm	150 × 40 × 70 mm	150 × 40 × 70 mm
Standard	Battery charger (for China, US, UK, Australia and Europe and in compliance with FCC, CE, EAC and RoHS), single 18650 battery, USB Type C cable, lens cap, wrist strap, carry bag, quick start guide
Optional	Bluetooth remote control
