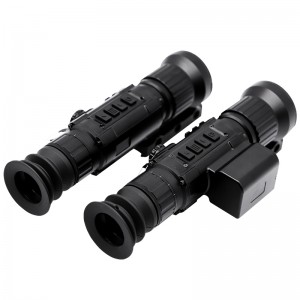

Infrared Night Vision Monocular MP-L50LRF Thermal Scope

Short Description:

MP-L series is a high-performance civil infrared thermal imager, which uses importedhigh-performance384×288/640 × 480 high-resolution and high-sensitivity polysilicondetector with excellent imaging effect.Compact design, compact size, dust-proof waterproof,with high-strength impact resistance, cold, heat, strong and durable, suitable for all kinds of environ-ments.

Send email to us Download as PDF

Product Detail

Product Tags

Product Characteristics

> High resolution imported 384×288/640× 480, 17μm high sensitivity polysilicon detector.
> No film design, the highest frame frequency 50Hz, smooth picture
without a catenary
> 0.5 inch 1024×768 OLED display with fine picture quality
> Aluminum-magnesium Alloy CNC technology to produce one-piece m-olding body, excellent anti-shock performance, strong environmental adaptability
> Support rich image adjustment function, support menu function
> 35/50 mm large Lens, long detection distance, high base magni-fication
> Integrated Range accuracy is higher, once calibration, life-long adj-ustment-free
> Various types of clamps are optional, suitable for all kinds of mainstream guide rail
> Can replace 16340 battery, Standard Charger, long endurance

Specifications

Model	MP-35	MP-35LRF	MP-50	MP-50LRF	MP-L50LRF
Detector
DetectorType	Vanadium Oxide uncooled detector
Response band	8~14μm
NETD	< 35mk(@25°C,F#=1.0)
Infrared resolution	384×288@12μm				640×512@12μm
Frame frequency	50fps
Lens
Focal length	35mm	35mm	50mm	50mm	50mm
Field Angle	7.5°×5.7°	7.5°×5.7°	5.3°×4.0°	5.3°×4.0°	10.8°×8.1°
Base multiple	3X	3X	4X	4X	2.8X
Focusing	Manual Focus
Display system
Display screen	Color 0.39 "OLED screen,1024×768
Video output	CVBSThe CVBS format supports external videos
Image function
Correction mode	Background correction
Non-uniformity correction	Shutter calibration technique
Brightness / Contrast	Support adjustment, level l to 5 adjustable
AGC Mode	automatic
Noise reduction	Support
Electron ampliﬁcation	×1，×2，×4，×8
Pseudo-color mode	Black heat, white heat, red heat, fusion
Bad spot repair	Support
Video output interface	Type-C
Startup speed	＜5S
Parameter saving	Support
Cross cursor	5 kinds
Menu	Support
PowerSupply
BatteryType	Rechargeable lithium-ion battery(18500×1）
WorkingTime	The continuous working time of single battery is more than 8 hours, and the battery can be replaced
Environmental adaptability
Operating temperature	-40℃~60℃，＜90%RH
Dust/water proof	IP67
Physical characteristics
Weight	≤450g
Dimensions	180mm×65mm×53mm
Standard configuration	Host×1 Picatini rail×1 Portable bag×1 Charger×1 18500 Battery×2 Specification×1 Warranty card×1
Packaging content
Reference object	MP-35	MP-35LRF	MP-50	MP-50LRF	MP-L50LRF
People	R：1600m D：640m		R：1900m D：760m		R：3800m D：1520m
Pig/Deer	R：1472m D：589m		R：1672m D：669m		R：3344m D：1338m
Rabbit	R：405m D：162m		R：487m D：195m		R：974m D：390m
Chickens	R：302m D：121m		R：356m D：143m		R：712m D：286m
Sparrows	R：167m D：67m		R：195m D：78m		R：390m D：156m
